Genuine Toyota Full Gasket Set - 1KD-FTV 3.0L Turbo Diesel - Hilux, Prado & HiAce
$478.00
Regular price
was
Sale price
now
$478.00
Genuine Toyota full gasket set for the 1KD-FTV 3.0L turbo diesel, the seals and gaskets you need for a head job or a full rebuild, supplied by Toyota rather than an aftermarket copy.
The head gasket is not included — and that is deliberate
The 1KD-FTV uses five different head gasket thicknesses, graded A to E. The right one is not decided by model or build year. It is decided by measuring piston protrusion above the deck once the engine is apart, taking the largest reading of the four, and matching it to the corresponding grade:
| Largest piston protrusion | Gasket grade | Installed thickness |
|---|---|---|
| 0.005 – 0.054 mm | A | 0.80 – 0.90 mm |
| 0.055 – 0.104 mm | B | 0.85 – 0.95 mm |
| 0.105 – 0.154 mm | C | 0.90 – 1.00 mm |
| 0.155 – 0.204 mm | D | 0.95 – 1.05 mm |
| 0.205 – 0.255 mm | E | 1.00 – 1.10 mm |
Because the grade can only be chosen once the engine is stripped and measured, Toyota supplies the head gasket as a separate part. A kit that bundles one fixed thickness is guessing on your behalf and the wrong thickness changes your compression ratio and piston-to-valve clearance.
Measure first, then order the matching grade. Give us a call with your protrusion figure and we will supply the correct gasket. Always confirm the figures above against the Toyota workshop manual for your specific engine before ordering.

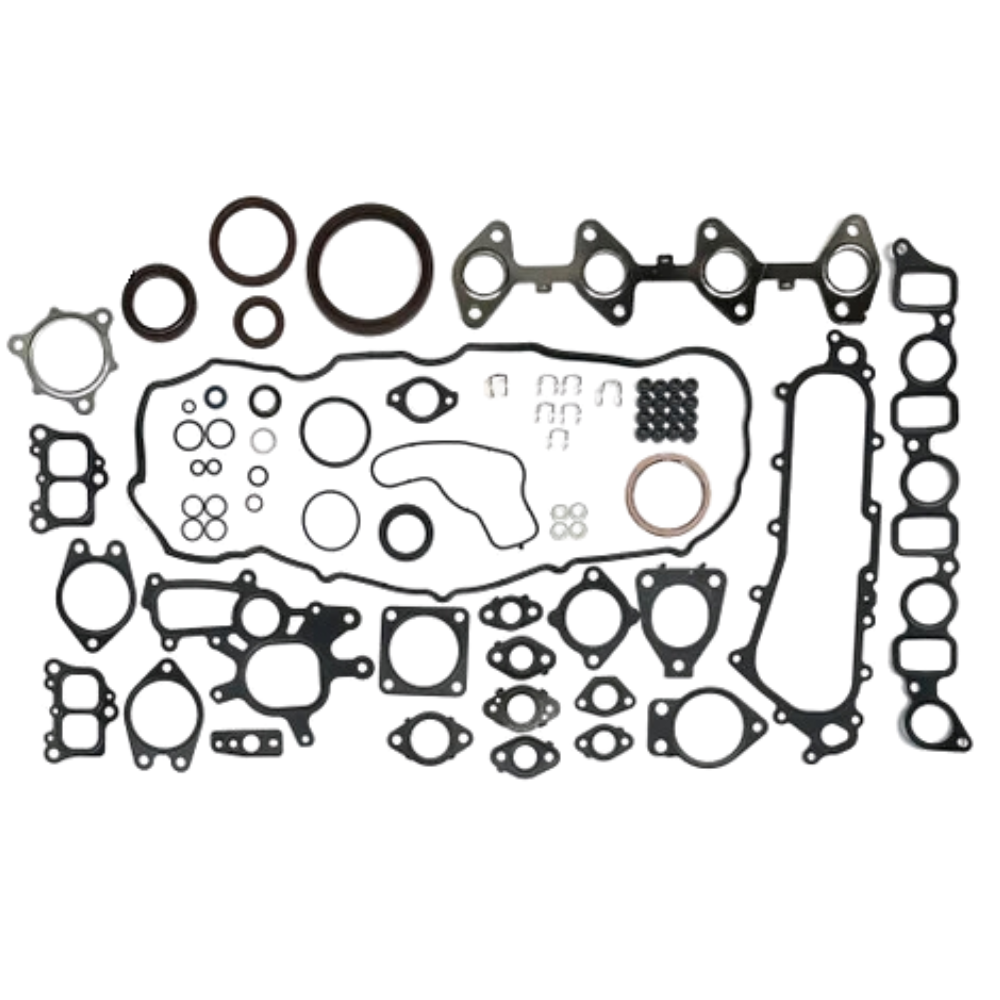

What is in the set
- Inlet and exhaust manifold gaskets
- Rocker cover gasket
- Valve stem seals
- Injector seals and washers
- Camshaft oil seal
- Front and rear crankshaft seals
- Water pump gasket
- Oil cooler gaskets
- Assorted O-rings and small seals
Head gasket and head bolts are not included.
Head bolts are single-use
The 1KD-FTV uses torque-to-yield head bolts — 85 Nm, then a further 90° twice. Once stretched they should not go back in. Order a fresh set at the same time; it is cheap insurance against pulling the head off twice.
Fitment
| Model | Code | Years |
|---|---|---|
| Hilux | KUN16R / KUN26R | 2005 – 2015 |
| Land Cruiser Prado | KDJ120R | 2003 – 2009 |
| Land Cruiser Prado | KDJ150R | 2009 – 2015 |
| HiAce | KDH | 2006 – 2019 |
Engine: 1KD-FTV, 2982cc, four-cylinder DOHC 16-valve common rail turbo diesel, 96.0 mm bore x 103.0 mm stroke.
Fitment can vary with build date and market. Send us your VIN and we will confirm before you order.
Why genuine
Gaskets and seals are the cheapest parts in a rebuild and the most expensive to get wrong a weeping rear main or a leaking oil cooler seal means the engine comes back out. We stock the Toyota set because we build 1KD engines ourselves and would rather not do the job twice.
