Manta 3in Turbo Back Exhaust - Nissan Patrol GU ZD30 3.0L Turbo Diesel Wagon & Ute 2000-2017

Manta 3in mandrel-bent turbo back exhaust systems for the Nissan Patrol GU fitted with the 3.0L ZD30 turbo diesel. Covers the GU wagon from April 2000 to 2017 and the GU cab chassis ute from 2008 to 2017.

Full 3in tubing, Australian made. The ZD30's factory exhaust is heavily restricted, and opening it up is one of the most effective things you can do for the motor.

Build your system using the drop-downs below. Every combination is a complete turbo back kit including the clamps, gaskets and hangers required for a bolt-on fit.

Fitment & system

Pick the row that matches your Patrol. The wagon and ute run different rear sections, and the wagon changed engine in January 2007 - up to December 2006 is the direct-injection ZD30, January 2007 onwards is the common-rail ZD30.

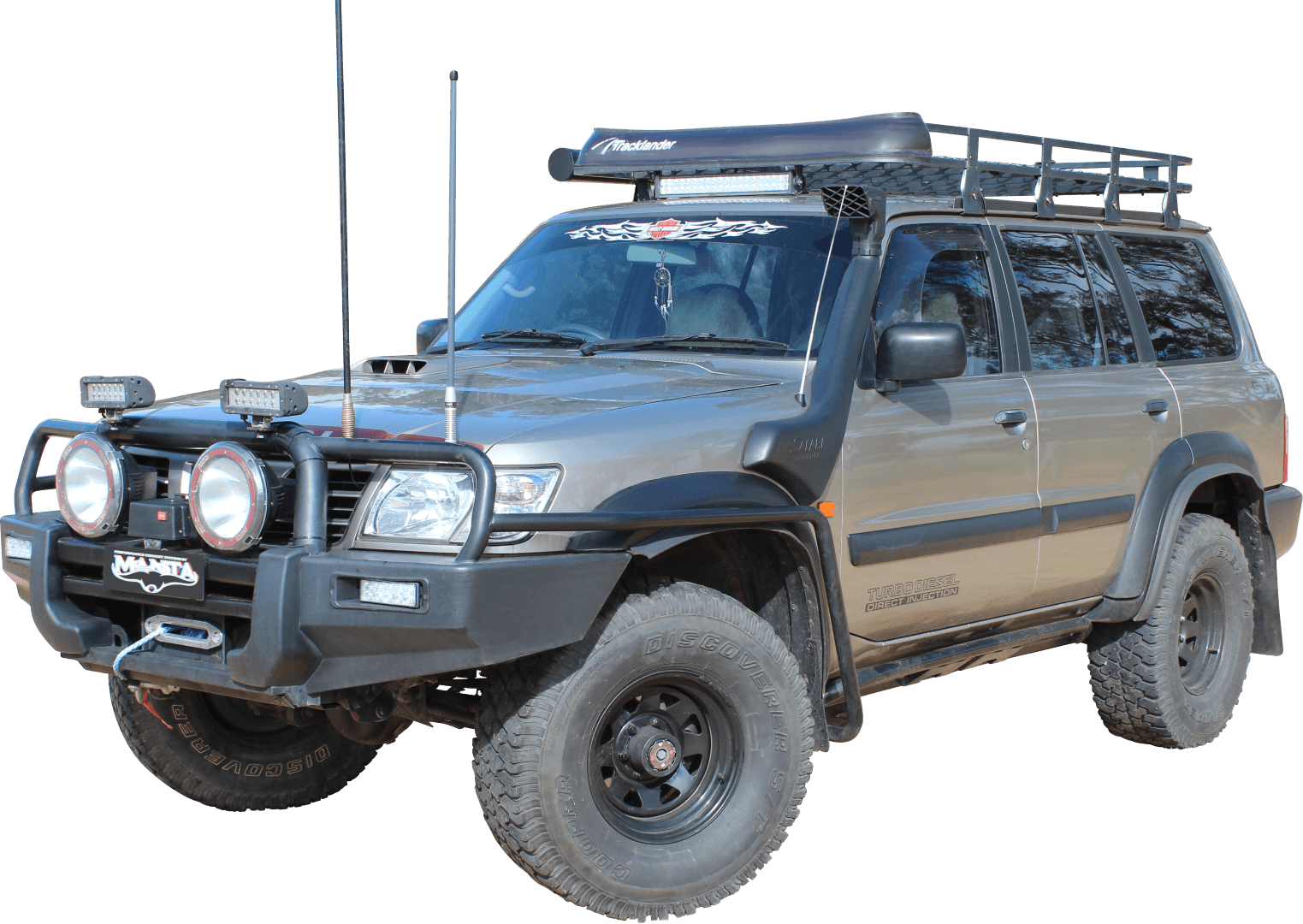

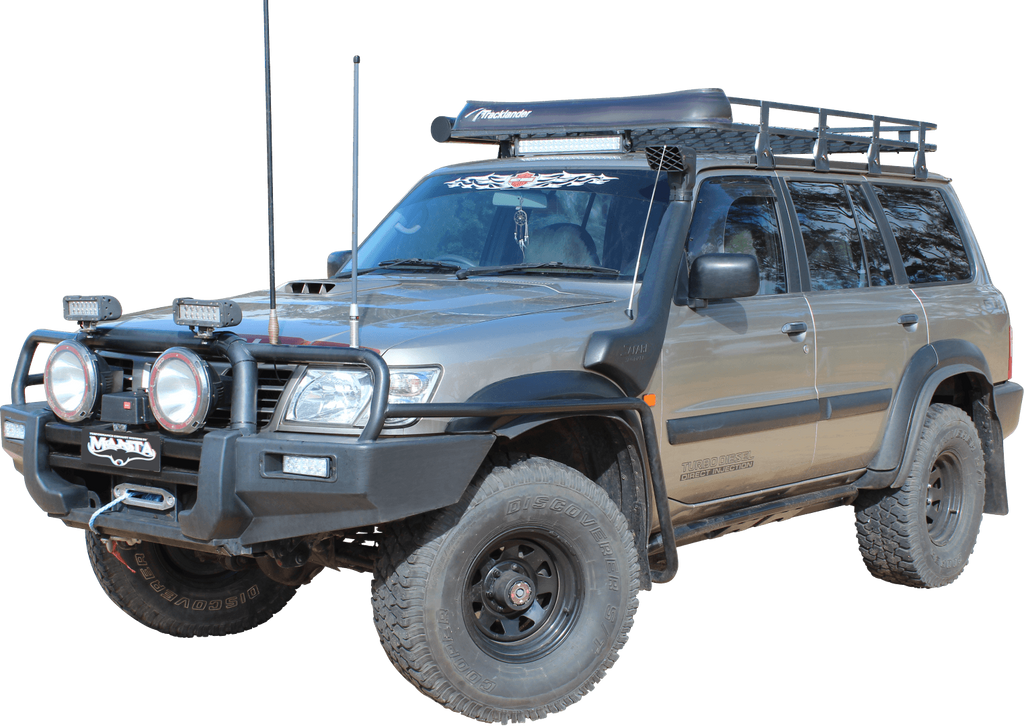

• GU Wagon 2000-2006 (DI)
• GU Wagon 2007-2017 (Common Rail)

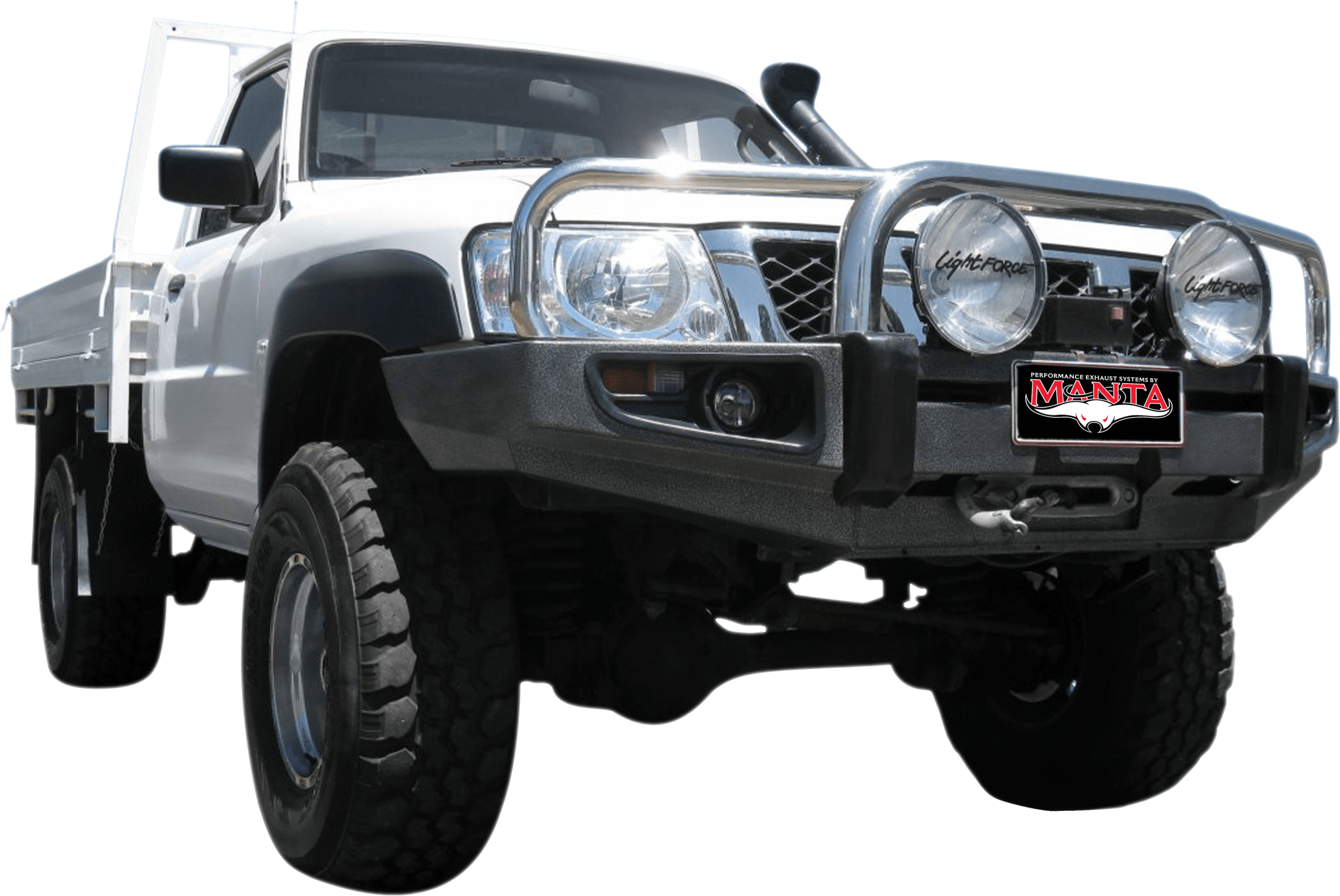

• GU Ute 2008-2017 (Common Rail)

Each is offered two ways:

• Turbo Back With Cats - retains a catalytic converter. The road-legal choice.
• Turbo Back Without Cats - cat delete pipe in place of the converter. Competition and off-road use only.

Material

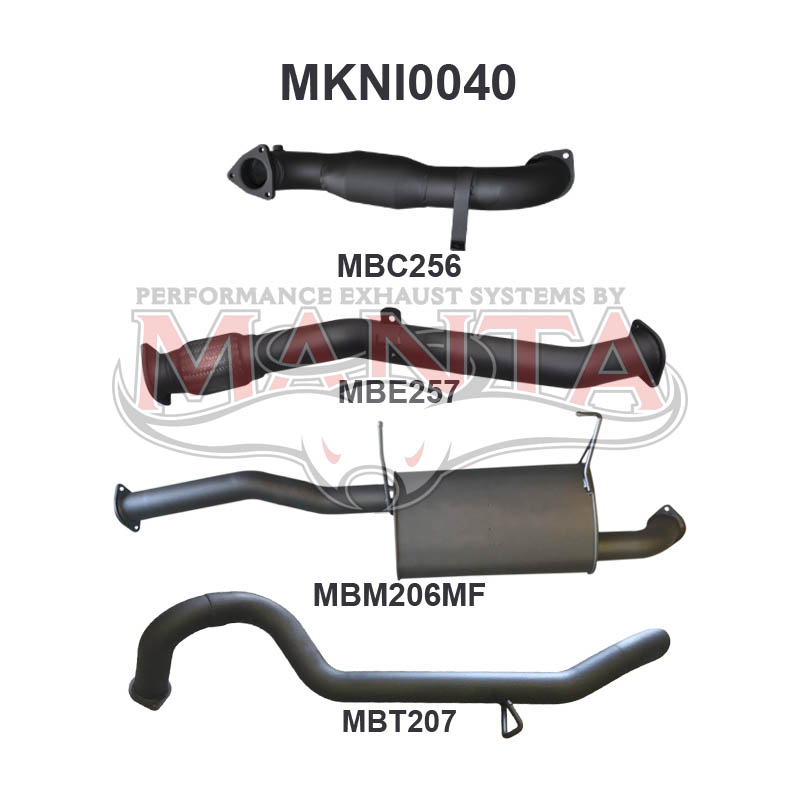

• Aluminised Steel - Manta's standard mild steel system with an aluminised coating. Best value. 2 year warranty.

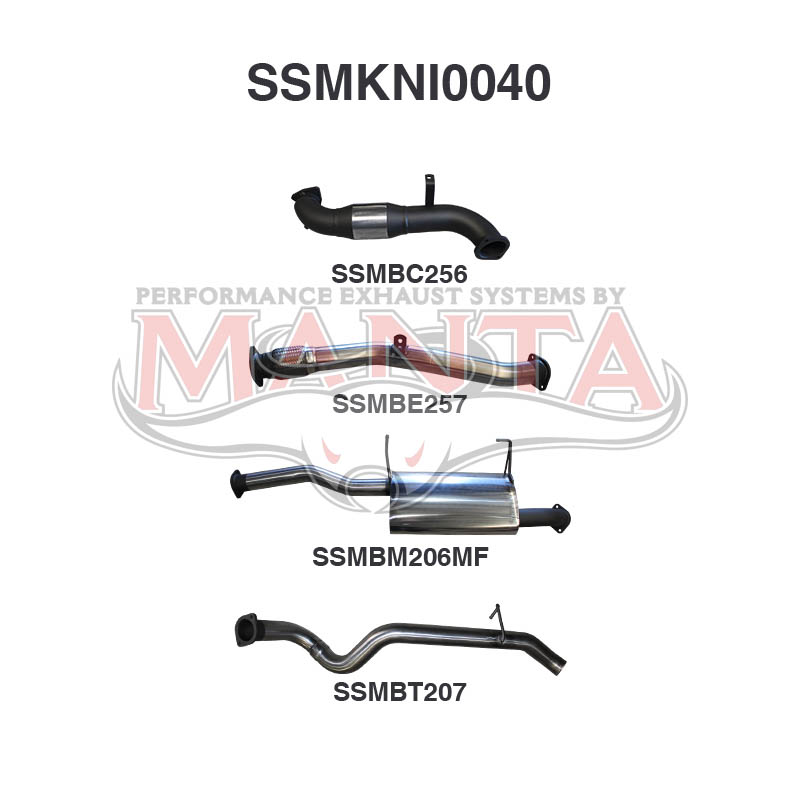

• Stainless Steel - 409 grade, maximum corrosion resistance. Recommended for coastal, beach, heavy mud and river crossing use. 10 year warranty.

Noise level

• Quiet - Full Muffler - the most subdued option, closest to factory in-cabin noise.
• Medium - Hotdog Resonator - a deeper note without highway drone.
• Loud - No Muffler (WOM) - straight through, the most aggressive tone.

What you gain

• Improved low-down torque and throttle response
• Reduced turbo lag
• Lower exhaust gas temperatures
• Improved fuel consumption
