Genuine Turbo Gasket Kit - Right Side - Toyota Land Cruiser VDJ200 1VD-FTV V8

The complete right-side turbo gasket kit for the twin-turbo 1VD-FTV V8 in the VDJ200 Land Cruiser. Made in Japan, multi-layer steel. OE reference 04175-51031.

Check the side before you order

This is the right-side kit only. The left side is a different part number and a different kit. If you are pulling both turbos — and on a 200 Series you usually are, because you have already done the hard part getting in there — order both sides. Doing one and finding out you need the other is a wasted weekend.

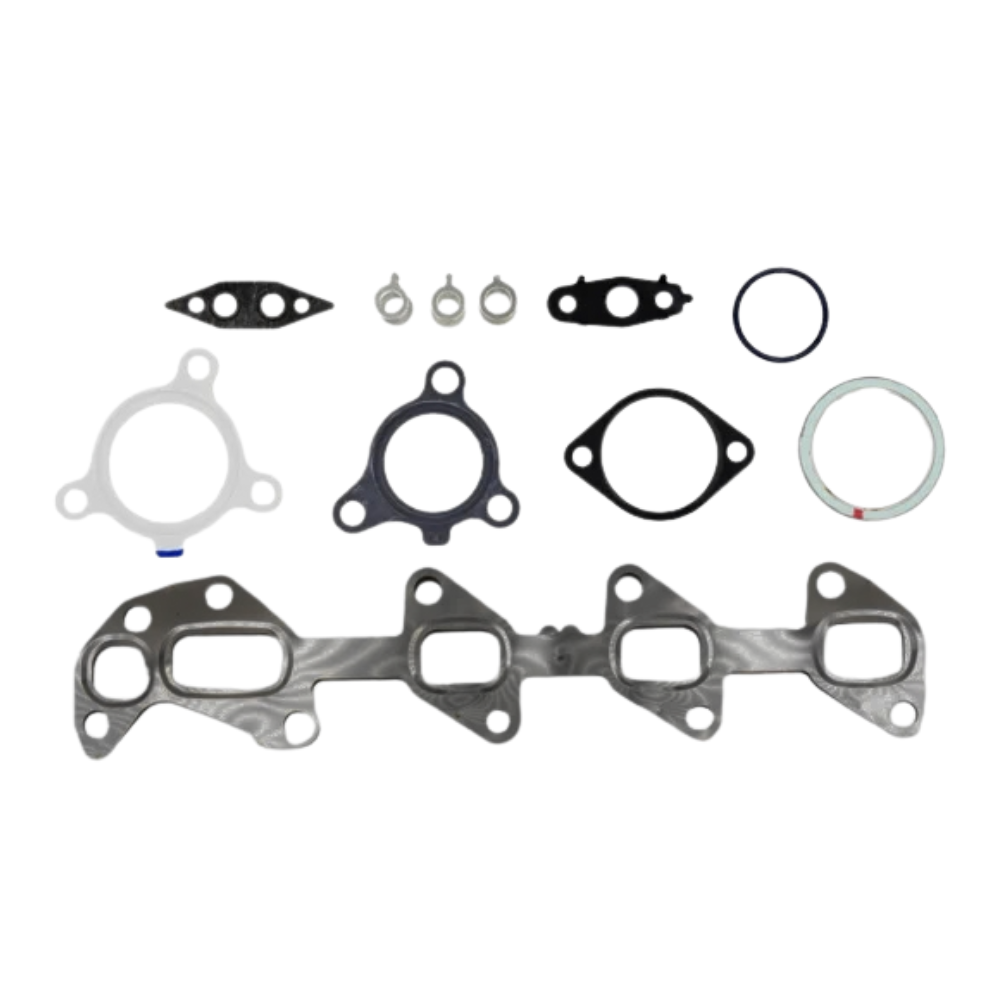

What is in it

• Exhaust manifold gasket
• Turbo to manifold gasket
• Turbo to dump pipe gasket
• Oil feed and oil drain gaskets
• Assorted sealing washers

Direct replacement, no modification. Multi-layer steel where it counts — these joints see full exhaust gas temperature and a composite gasket will not last.

While the turbo is out

The 1VD packs carbon into the intake from the EGR, sometimes from as little as 15,000 km. If you have the engine bay apart this far, it is the right moment to pull the intake down and clean it — we stock the intake clean gasket kit for these.

Fitment

Not sure what you have got? Send us your VIN or engine number and we will confirm it before you order.
